Abstract

Snowfall plays an important role in the Earth's water cycle, especially in orographically complex regions. However, snowfall in these regions is still poorly understood and subject to many uncertainties. CORSIPP aims to answer the following questions:

1. Which processes influence snowfall formation and snowfall rates in orographically complex terrain?
2. Which microphysical processes dominate precipitation formation and how do they influence precipitation rates?
3. What are the external forcing factors in complex terrain?

The project focuses on secondary ice production (SIP), especially in connection with riming processes, and analyses the influence of turbulence and frontal systems. For that purpose, a scanning W-band cloud radar and a novel video in situ snowfall sensor gathered extensive data for the entire winter season 2022-2023 in the Colorado Rocky Mountains as part of the SAIL campaign (Surface Atmosphere Integrated Field Laboratory: https://sail.lbl.gov). An overview of the field campaign is given in the Multimedia PageFlow created by the communication department of Leipzig University (https://unileipzig.pageflow.io/dem-schnee-auf-der-spur).

By simultaneously measuring snowfall with a Video In-Situ Snowfall Sensor (VISSS, Maahn et al., 2024a) and a 94 GHz dual-polarimetric W-band cloud radar (LIMRAD94, Küchler et al., 2017) direct information on the shape and size of individual snow particles is obtained and enables to derive particle size distributions and polarimetric quantities for the volume observed. The synergistic use of the two instruments and the forward operator PAMTRA allows us to answer the aforementioned key questions of the CORSIPP project.

In the first project year, simultaneous snowfall measurements with VISSS and LIMRAD94 have been performed at the Rocky Mountain Biological Lab (RMBL) in winter 2022/2023, embedded in the SAIL measurement campaign (WP1). As a result, a unique synergistic dataset of snowfall in orographically complex terrain has been published (Kalesse-Los et al., 2023; Maahn et al., 2024b). Currently, the dataset is analyzed statistically to understand KDP signatures in snowfall. The statistical analysis is complemented by in-depth case studies selected for detailed process analysis.

Analysis of Radar Data

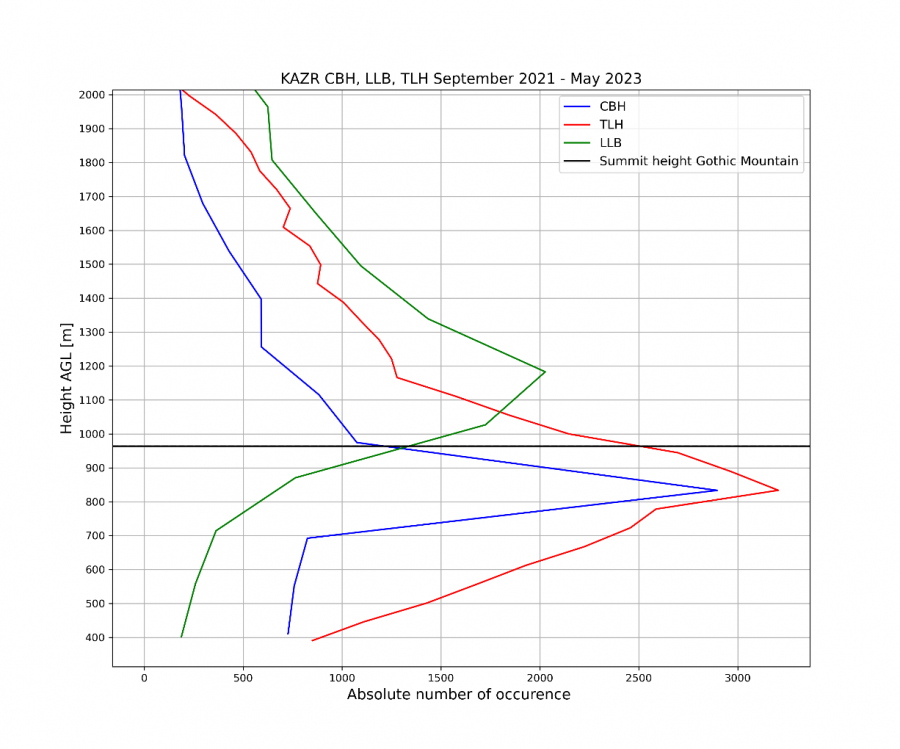

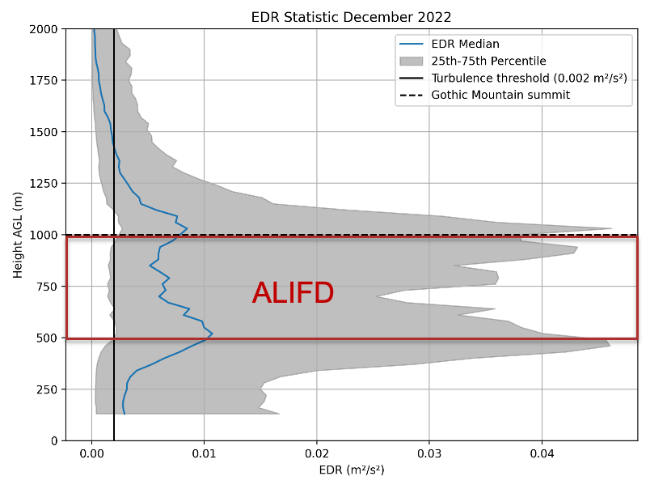

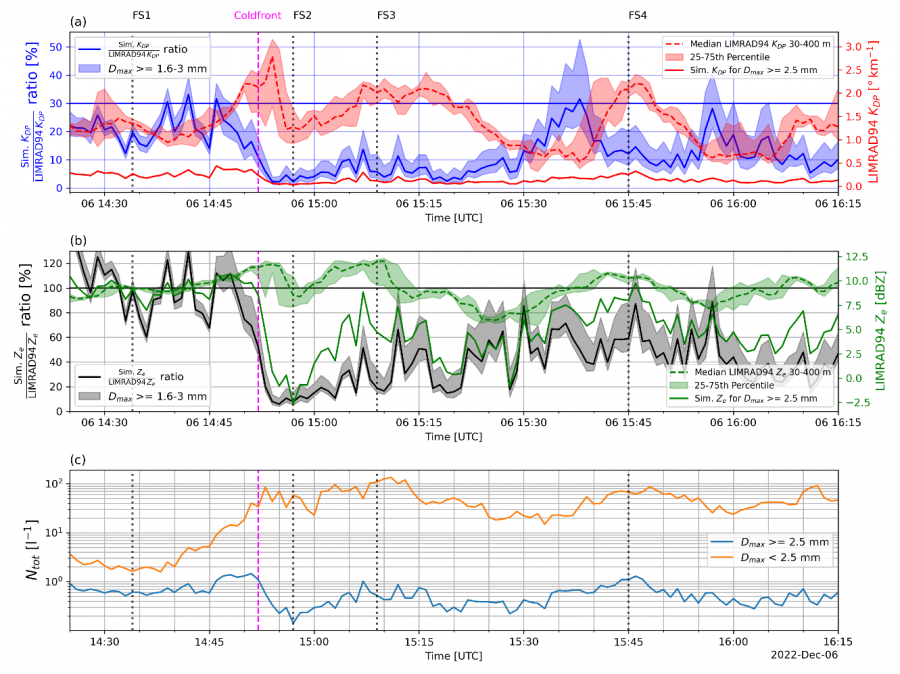

Wind and turbulence play an important role in orographically complex areas and lead to an increase in riming and secondary ice production (SIP, Ramelli et al., 2021). We analyzed wind and turbulence and found that many of our measurement days were strongly influenced by Gothic Mountain. Our measurement devices are located in the lee of the Gothic Mountain during westerly winds, which leads to an area of lee-induced flow disturbance (ALIFD), resulting in increased wind shear along the edges of the ALIFD (at about 500 m and 1000 m AGL). The two areas of increased wind shear can be clearly identified by the two maxima of eddy dissipation rate at 500 m and 1000 m AGL (Fig. 1). WSW-WNW is also the main wind direction for precipitation events with an amount >0.5 mm/h. These layers of turbulence, which were almost always present, complicate the further investigation for the determination of riming and SIP, as common retrievals used to detect these processes are not reliable in turbulent conditions. Another point we focused on was the investigation of different Specific Differential Phase (KDP) signals. Using the collocated in situ measurements from VISSS, we found that snow particle populations with different properties, sizes and number concentrations lead to similar KDP magnitudes. This is shown in Figure 2 where averaged KDP values close to the ground plotted against D32 obtained from the VISSS (proxy for the mean mass-weighted diameter of the particle population) and the total number concentration Ntot. Currently, we cannot rule out the contribution of bigger, low number concentration aggregates on W-Band KDP as particle populations with low Ntot and high D32 produce similar KDP values as populations with low D32 and high Ntot. Another interesting find was that blowing snow appears to be capable of producing high KDP values as well.

Analysis of VISSS In Situ Data

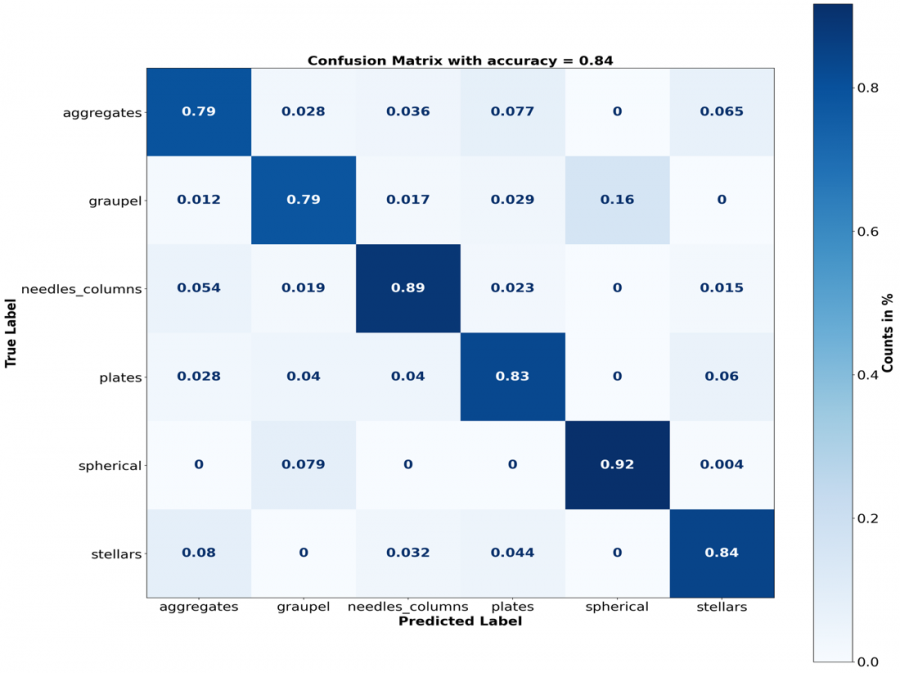

Ice particle properties like number, size and shape, and processes like aggregation and riming influence precipitation formation, lifetime and radiative properties of mixed-phase and ice cloudiness. The variety of ice particle shapes complicates cloud microphysical modelling and remote sensing, and understanding these shapes is essential for accurate cloud modelling, remote sensing and climate prediction. Therefore, we focused on analyzing the different single particle properties, like shape, size and degree of riming for the 883.874.476 particles observed by VISSS. We estimated particle shape using a supervised classification algorithm (1000 labels per shape class). Figure 3 shows the distribution of different particle shapes for snowfall in Gothic in winter 2022/2023 December, January and February. More than 70% of the particles are too small (DMax ⇐ 0.5mm) to be classified correctly. Among the particles for which the shape can be determined, the most common particles are aggregates, followed by stellars/dendrites. Riming is one of the main growth processes of ice particles and can also lead to SIP (via splintering during riming, Hallet Mossop Process). Therefore, the in situ method of Maherndl et al., (2024) was used to investigate the frequency of riming and the result is shown in Figure 4. During the winter at Gothic, the proportion of heavily rimed particles with DMax >= 1 mm was over 40%. This agrees well with the statement made at the beginning that in orographically terrain with complex wind and turbulence systems, an increased frequency of particle riming occurs.

The next step is to compare the times with a high occurrence of one particle shape (e.g. only needles, only graupel, only dendrites, only aggregates) with the measured radar variables in order to detect differences in the radar variables depending on the particle shape.

Using SAIL measurements to support the ESA Earth Explorer 11 candidate mission WIVERN

WIVERN (WInd VElocity Radar Nephoscope, Illingworth et al., 2018), one of the two remaining ESA Earth Explorer 11 candidate missions, is planned to be equipped with a conical scanning 94 GHz radar and a passive 94 GHz radiometer. While the main objective of the mission is to measure global in-cloud winds, WIVERN reflectivity data can also be used to derive IWC and SR. Compared to CloudSat and EarthCARE, WIVERN's 800 km swath provides better coverage (70 times better than CloudSat) leading to significantly reduced the uncertainty of polar snowfall estimates (Scarsi et al., 2024). Further, it will be the first space-born cloud radar with polarimetric capabilities. Therefore, the slanted LIMRAD94 observations during SAIL were used to obtained statistics of KDP in snowfall for developing a WIVERN instrument simulator (Rizik et al., 2023). Further, SAIL data is currently used in a separate ESA-funded activity to explore using the potential of using relatively noisy space-born KDP observations for enhancing snowfall rate retrievals.
