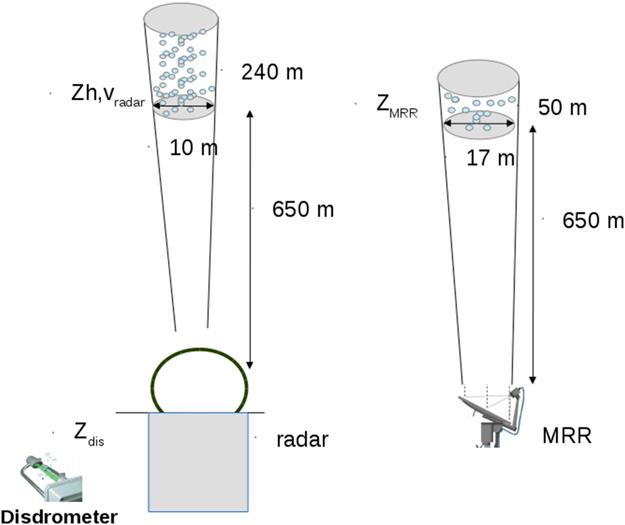

The idea behind HydroColumn is to characterize precipitation processes inside a vertical atmospheric column by combining polarimetric Doppler weather radar observations with microrain radar (MRR) and in situ measurements. The C-band weather radar furnishes high-resolution polarimetric and spectral signatures of the precipitation aloft, while MRR and colocated in situ measurements allow tracking the precipitation down to the ground. The focus is the identification of ice- and mixed-phase precipitation processes above the melting layer which can then be related to atmospheric dynamics observed in wind and temperature profiles or modeled by numerical weather prediction models.

After modifying DWD's operational vertically pointing birdbath scan for all 17 radars of the German C-band radar network in 2021, we have now tested our newly developed analysis method for different precipitation conditions and published the birdbath scan methodology and results . Beyond typically observed light to moderate precipitation, we are especially interested in the interpretation of birdbath scans collected during severe weather. Here, a hail case is of particular interest, where a supercell thunderstorm moved over the Hohenpeißenberg observatory and the Doppler spectra obtained from the birdbath scans offer a unique view into the precipitation processes inside the supercell.

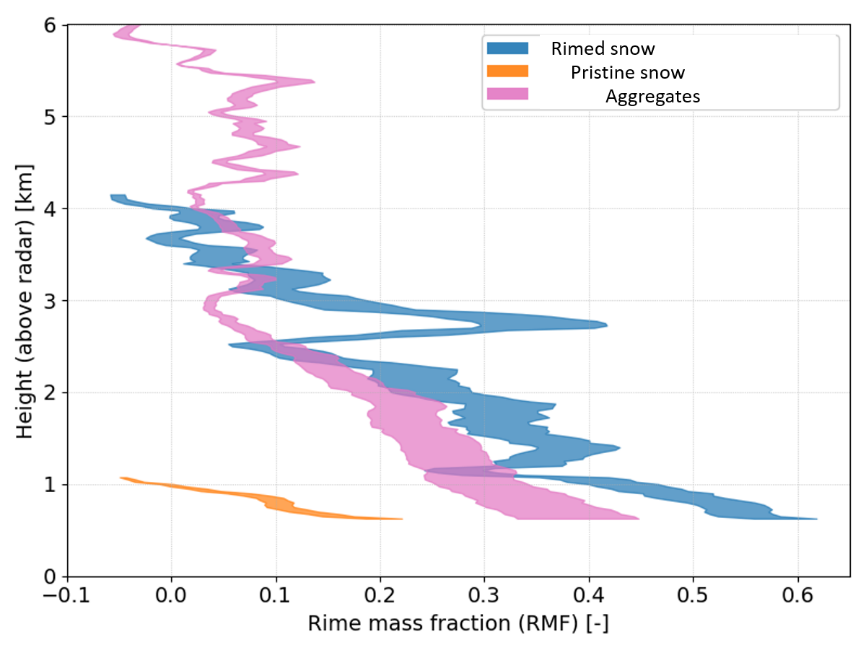

shows results for estimating the rime mass fraction from operational birdbath scan data by adapting the methodology introduced by for cloud Doppler radars to individual snow modes that are extracted from the Doppler spectra obtained with DWD's C-band weather radars as described by . According to , three snow types of significantly rimed snow, predominantly aggregate snowflakes, and more pristine snow crystals can be identified in combination with collocated in situ observations of wind speed and liquid-equivalent precipitation rate. The retrieved rime mass fraction specifically quantifies the degree of riming of the observed snow. Uncertainties introduced by vertical air motions (e.g. at altitudes of about $2$ to $3\,\mathrm{km}$ above the radar) are not captured by the adapted methodology.

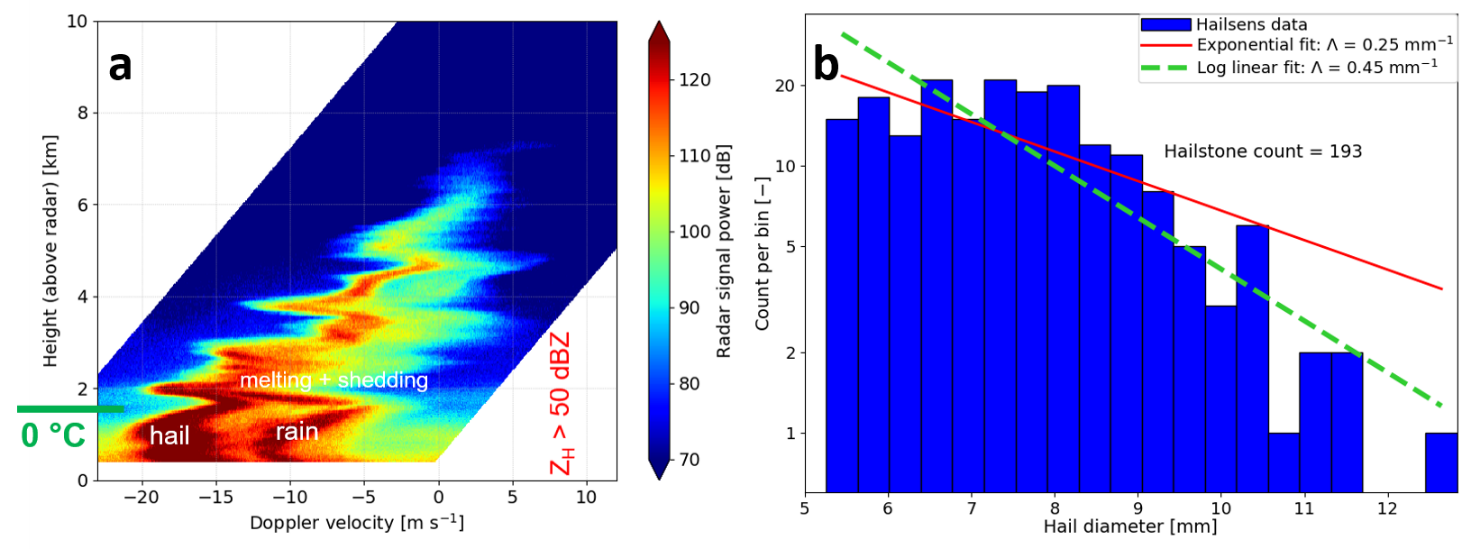

A long-living supercell thunderstorm moved over Southeastern Germany on 30 April 2021 and the severe hail (hailstone diameters $> 2\,\mathrm{cm}$) caused substantial damage to agricultural crops and roof windows. The supercell moved directly over the Hohenpeißenberg radar, allowing for a detailed study of the radar characteristics of the supercell. shows the unfolded Doppler spectra that were recorded by the birdbath scan during the 5-min hail shower at the radar site. shows the distribution of hailstone sizes during the hail shower, determined from the Hailsens in situ sensor that estimates the hailstone diameters from the hail impact energies on a plastic disc of about $50\,\mathrm{cm}$ diameter, which is installed close to the ground.

illustrates the bimodal precipitation near the ground, consisting of both hail and rain. Additionally, hail melting and shedding (where frozen hail transitions into liquid rain) can be identified around $0^\circ\mathrm{C}$. Here, the $0^\circ\mathrm{C}$ level is based on DWD's operational ICON-D2 atmospheric model . represents one of only few hail in situ data sets where the full hail size distribution is sampled, instead of only including an estimate for a typical hail size or focusing on a single very large hailstone that is then assumed to specify the maximum hail size of the entire hail event. Here, we can fit an eponential hail size distribution to the in situ hail data with typical slope parameters of $0.2 < \Lambda < 0.4\,\mathrm{mm}^{-1}$. However, these automated in situ observations suggest a maximum hail size of much smaller than 2 cm, in contrast to manually performed hail size measurements of several particularly large hailstones with maximum dimensions of $\ge 2.0\,\mathrm{cm}$. This suggests that there may be a systematic bias of the Hailsens calibration or that the Hailsens misses large hailstones due to sampling effects.

By presupposing that Doppler velocities in represent particle fall velocities and leveraging existing hail size-to-fallspeed relationships and hail scattering simulations, we plan to also estimate the full hail size distribution from the Doppler spectra and compare the results with the in situ data of the hail sensor. Additionally, polarimetric radar measurements and multi-Doppler analysis will contribute to disentangling the dynamics of the supercell.

As the HydroColumn project transitions into the POMODORI project for the second phase of the DFG PROM priority programme (in collaboration with LMU Munich: S. Kneifel and P. Ockenfuss), we will focus on combining the riming retrieval from vertically pointing radar observations with polarimetric measurements of operational C-band radars to estimate the degree of riming not only in the atmospheric column above the radar but also across the radar scanning volume. We also continue to provide spectral C-band radar data for our collaboration with TROPOS Leipzig to work toward a potential application of spectral polarimetry to DWD's C-band radars.

References:

Our work during the first two years of the HydroColumn project has focused on (i) defining a (vertically pointing) birdbath scan strategy and implementing a flexible signal-processing methodology that allow a detailed analysis of C-band radar Doppler measurements and on (ii) exploring the benefits of combining C-band polarimetric measurements with such Doppler radar data and very short-term predictions from weather forecast model runs.

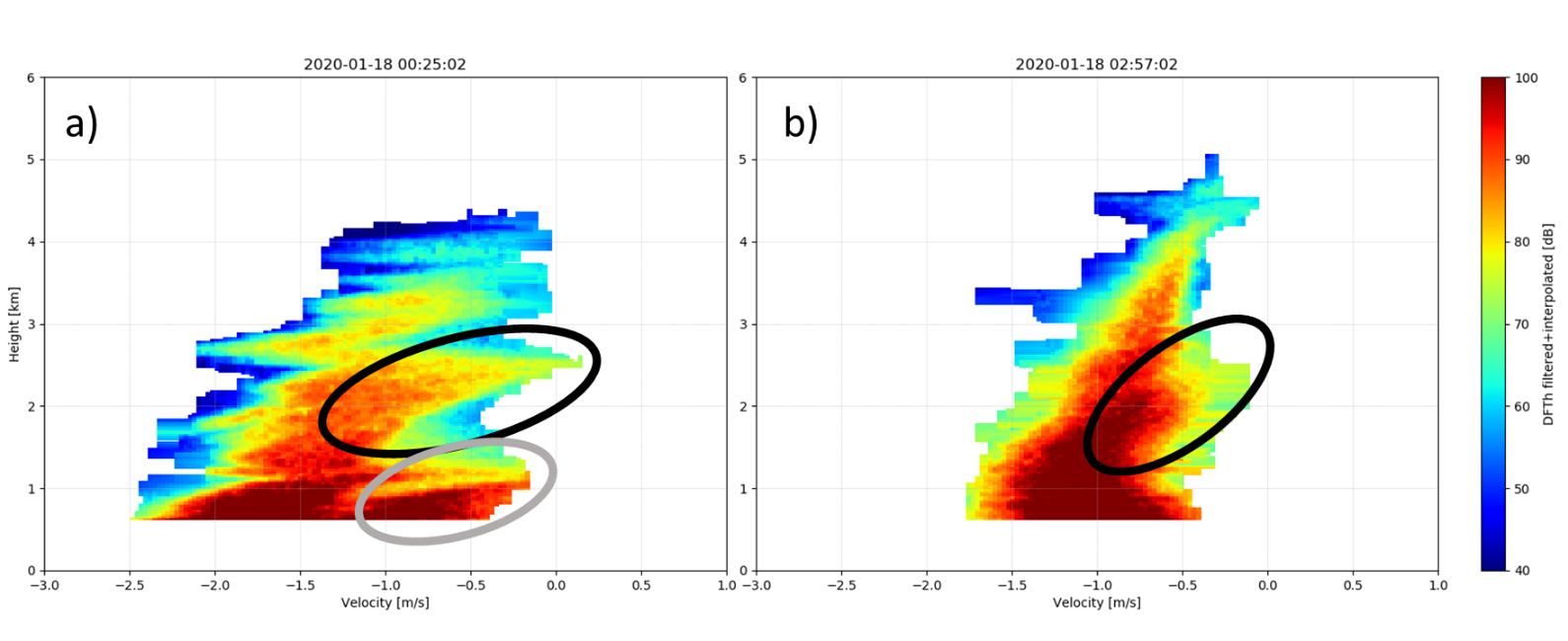

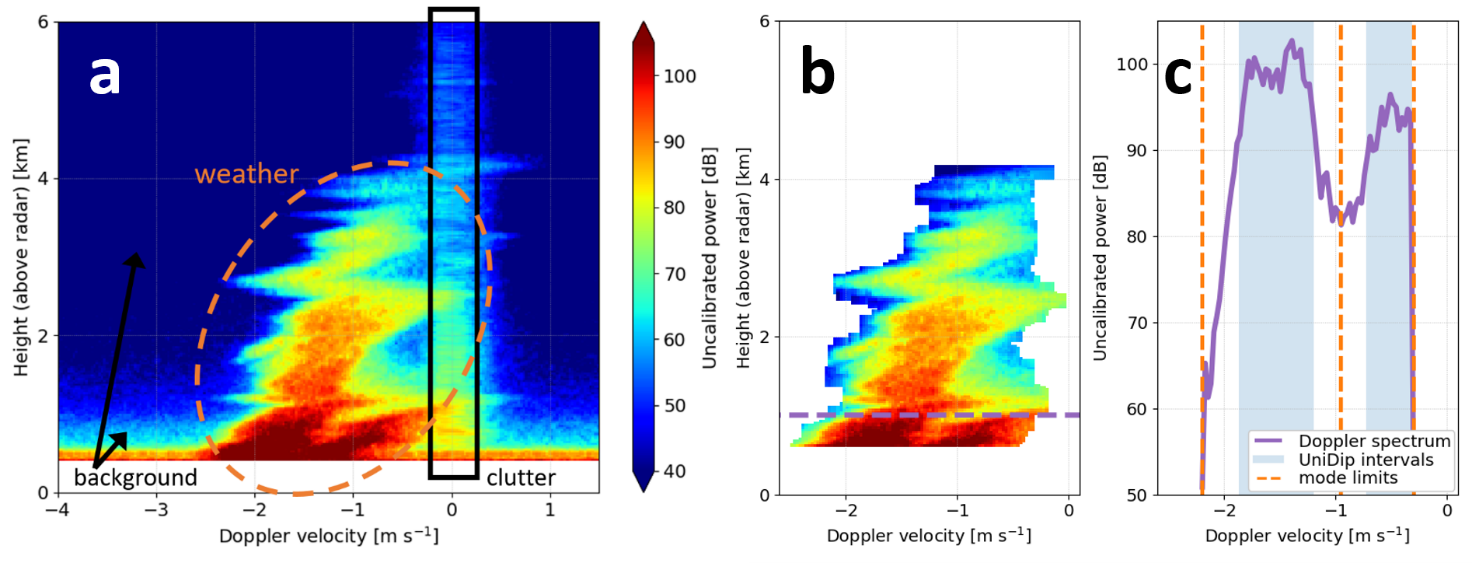

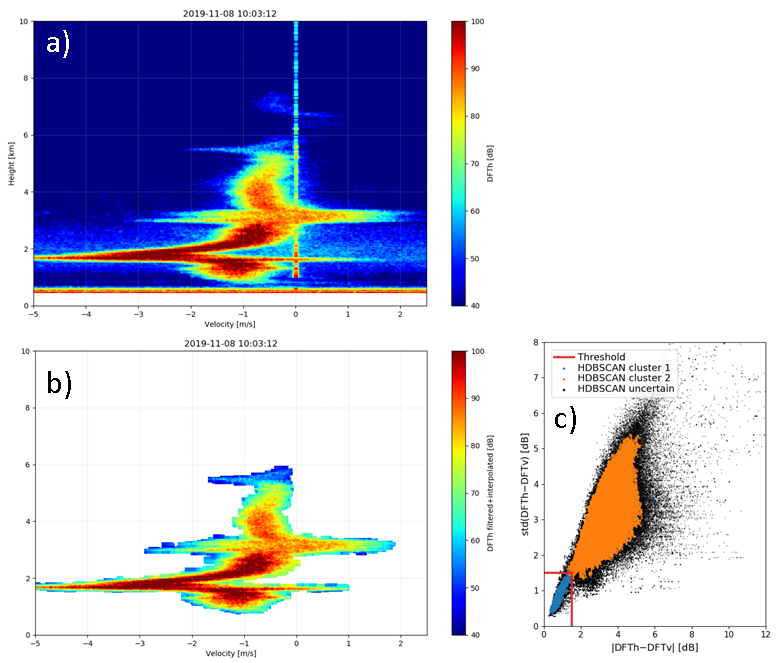

Birdbath scans for the 17 C-band dual-polarized Doppler radars of the operational DWD radar network have been routinely used for calibrating differential reflectivity ($Z_\mathrm{DR}$; ). Within HydroColumn, we have updated the operational birdbath scan strategy to also allow for a meteorological interpretation of these vertically pointing Doppler measurements. To the scientists’ knowledge, DWD is the only meteorological service worldwide that currently derives Doppler spectra operationally from vertically pointing observations across the radar network. shows a summary of the radar output in one of the two polarization channels recorded for one birdbath scan with the DWD research radar at the Hohenpeissenberg observatory (MOHp) that is identical to the operational DWD radars. For a detailed interpretation of the radar data, the weather signal has to be isolated from the non-meteorological clutter and background signals, and the individual Doppler spectra should be checked for the existence of multiple precipitation modes representing different precipitation regimes. Within HydroColumn, we have developed a flexible algorithm to automatically identify and isolate the weather signal by leveraging unsupervised machine-learning techniques. Hierarchical density-based clustering was used to cluster the radar output data based on the polarimetric characteristics of the Doppler measurements in the two orthogonal polarization channels (resulting in ). By then applying a fast clustering algorithm based on the dip test of unimodality , statistically significant precipitation modes can be identified in the Doppler spectra at all height levels (). For each mode, relevant modal properties, such as radar reflectivity ($Z_\mathrm{h}$), mean Doppler velocity or mode width, are calculated and their uncertainties are estimated. If multiple modes are found, multimodal parameters describing the relative strength, separation, or mixing of the individual modes can be computed. The results then give a detailed profile of quantitative precipitation characteristics and uncertainty estimates. , for example, indicates one fast-falling precipitation mode (typical velocities faster than $1.5\,\mathrm{m\,s}^{-1}$ downward) and a slower-falling mode below a height of about $1\,\mathrm{km}$, suggesting secondary ice processes associated with riming, which agrees well with in situ data collected next to the radar site.

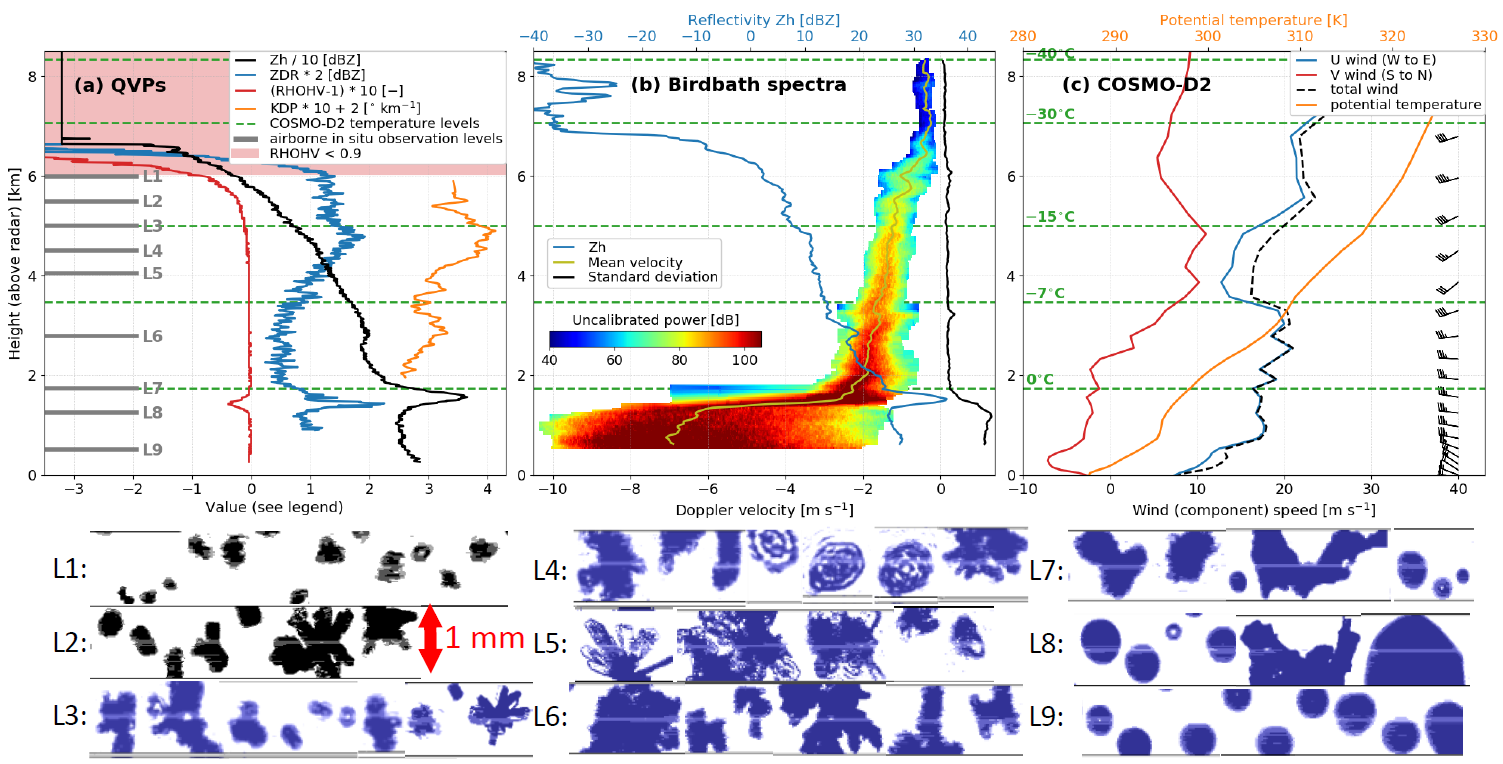

Owing to the high flexibility in operating the MOHp C-band radar, e.g., for testing scan strategies or modifying range sampling intervals, we were able to carry out a combined measurement campaign of radar measurements and airborne in situ observations provided by the German Aerospace Center (DLR) Falcon research aircraft during the BLUESKY campaign within the PROM phase-1 POLICE project . summarizes results from this campaign: high-resolution quasi-vertical profiles of polarimetric variables, vertically pointing Doppler measurements, short-term predicitions from the operational COSMO-D2 model (replaced by ICON-D2 in February 2021), and particle images collected in flight within a horizontal distance of about $20\,\mathrm{km}$ from the radar site and within $15\,\mathrm{min}$ of the radar measurements. Clearly, the polarimetric measurements already provide a great amount of information; the region of maximum $Z_\mathrm{DR}$ and increasing $Z_\mathrm{h}$ toward the ground approximately between altitude levels L3 and L4, for example, faithfully indicates the increased amount of preferentially horizontally oriented two-dimensional dendritic or plate-like frozen precipitation particles visible in the particle images around these levels. In the low-$Z_\mathrm{DR}$ region sourrounding level L6, however, the polarimetric fingerprint alone does not provide a clear indication of whether the dominant precipitation process is aggregation or riming. Here, the Doppler measurements add valuable information, because the enhanced values up to about $1.8\,\mathrm{m\,s}^{-1}$ indicate a transition from aggregates to moderately rimed particles. The particle images tend to confirm increasing riming of polycrystals and aggregates, especially when comparing them to the level L5. Finally, we can see in that transitions between regions of characteristic features in the radar data also correspond to changes in (thermo)dynamic variables obtained from COSMO-D2, e.g., the transition to low $Z_\mathrm{DR}$ is also marked by a spike in Doppler spectra standard deviation and a change in the atmospheric wind speed and direction around $-7^\circ\mathrm{C}$.

We have planned several upcoming combined measurement campaigns with DLR aircraft in situ observations where we will further investigate the co-variability of radar variables and weather forecast model outputs specifying the atmospheric (thermo)dynamics to characterize a more diverse set of precipitation conditions. Here, we also intend to build on first results for retrieving the rime mass fraction from the mean Doppler velocity . In collaboration with TROPOS Leipzig, we continue to analyze the potential of using spectrally resolved C-band polarimetric measurements collected at various elevation angles for quantitative microphysical retrievals.
